The design of the Katalon Studio is to ease many challenges that manual testers are facing. Additionally, in a large project, there may be hundreds or even thousands of test cases and test executions. Therefore, Test suite reports produced by Katalon Studio allow users to monitor their test status and have a better understanding of their project’s test coverage. Subsequently, this guide will give you an overview of reports and related supported essential functions. Additionally, we will discuss the below topics in the article, view test suite reports in Katalon:

  • Test Suite Report
  • Report Overview
  • Test Cases List
  • Test Suite Summary
  • Test Log Details
    • Test Log Tab
    • Information Tab
    • Integration Tab
  • Test Suite Collection Report
  • Report History
  • Export Report to Other Formats

Once a test suite finishes its execution, a historical report generates automatically and stores in the Reports section of Tests Explorer. Moreover, we place the Test suite execution reports in chronological order with the most recent one on top.

For example:

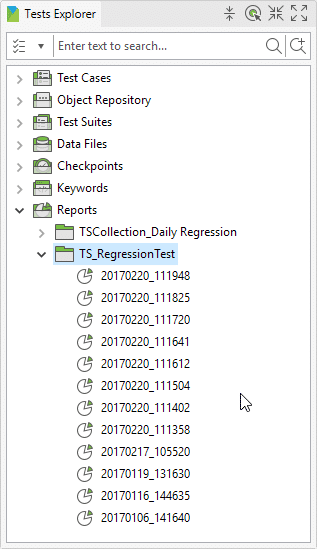

View test suite reports in Katalon Studio

In addition to this, the naming of the reports happens according to the naming convention: YYYYMMDD_HHmmss, which is the datetime when the test suite starts its execution.

Test Suite Report

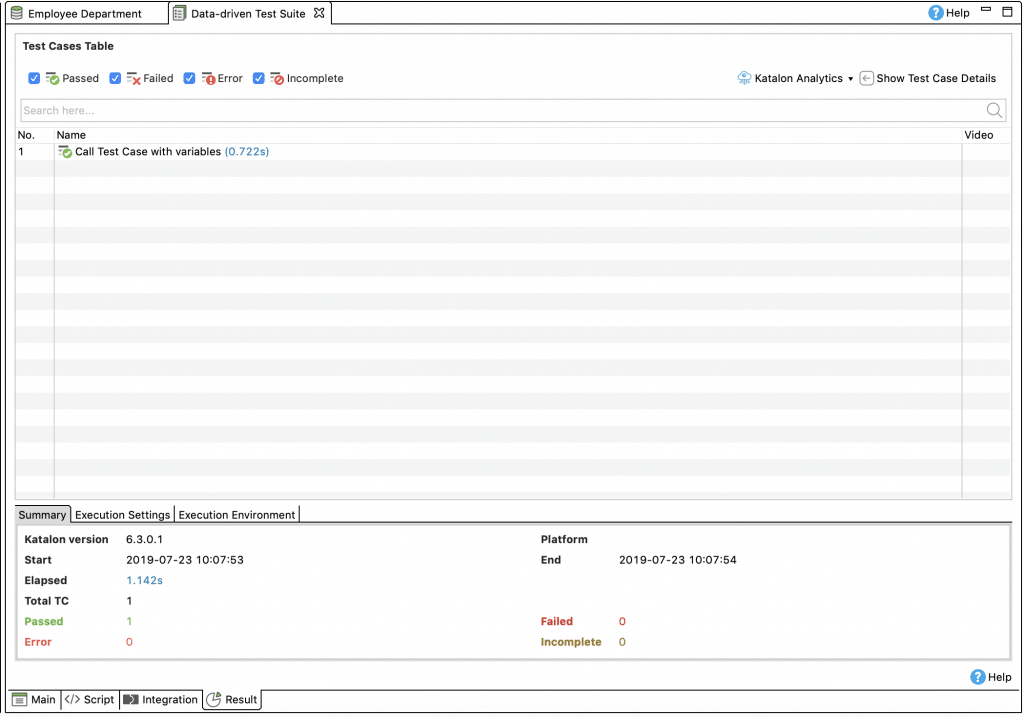

Beginning from version 6.3.0, we can view the reports directly inside each Test Suite page.

View Report inside Test Suite

Report Overview

In the Test Suite page, click on the Result  tab to view its details.

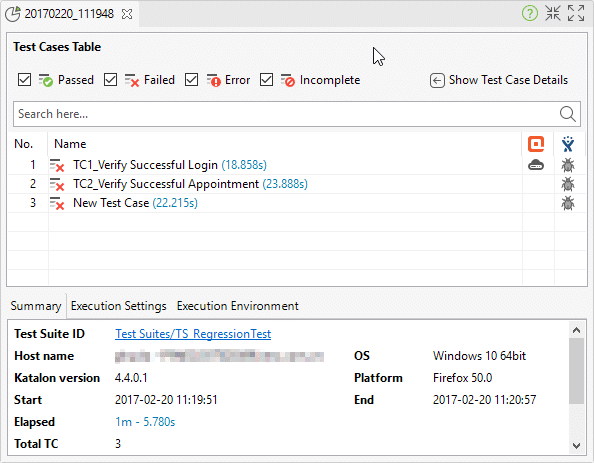

Test Explorer view

where :

Component Description
Test Cases Table List of executed test cases.
Summary It has summary information of the executed environment.

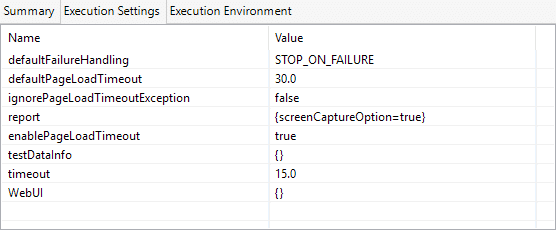

Execution Settings Settings for execution include information about handling a failed test case, page loading timeout, etc. For example: page loading timeout

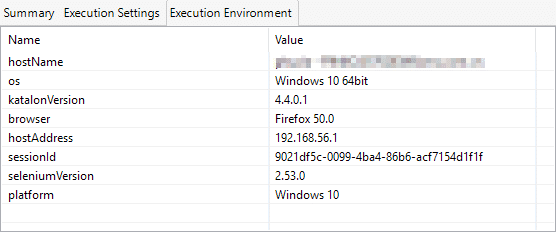

Execution Environment Information concerning the execution environment, including Host Name, Operating System (os), Katalon Studio version, browser, etc. For example: Information concerning the execution environment

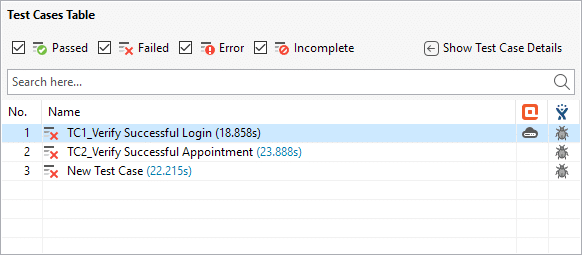

Test Cases List

  1. Firstly, the summary information of all executed iterations done in the test suite is displayed here. Additionally, each time when a test case executes with a test data row is considered an iteration.

Test Cases List

Additionally, users can quickly determine what information to display by using the filters.

Filter Description
Passed status Katalon Studio Passed Show only iterations that pass.
Failed status Katalon Studio Failed Show only iterations which fail.
Error status Katalon Studio Error Show only iterations having errors.
Incomplete status Katalon Studio Incomplete Show only incomplete iterations.
  1. Secondly, by selecting an iteration in Test Case Table and consequently, by clicking the Show Test Case Details, you can view details regarding its executed logs.

  2. Thirdly, if qTest and JIRA configure in Project Settings, you can submit these systems' results. Additionally, refer to qTest Integration (https://docs.katalon.com/display/KD/qTest+Integration) and JIRA Integration (https://docs.katalon.com/display/KD/JIRA+Integration) for more details.

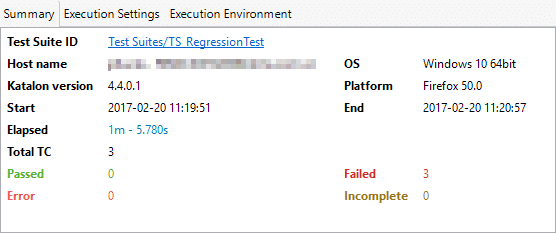

Test Suite Summary

This section details the information on the test execution summary report for a test suite, as shown below.

test execution summary report

The fields include:

Field Description
Test Suite ID It is the ID of the executed test suite in Katalon Studio. Moreover, once clicked, the test suite opens.
Hostname / OS / Platform The environment where the test suite executes
Start / End / Elapse Execution start/end date time and duration
Total TC The total number of test cases, grouped into four status groups, Passed, Failed, Error, and Incomplete.

Test Logs Details

This section shows all information regarding the iteration selected in the Test Cases Table section.

Test Log Tab

  1. Firstly, this tab displays the details of the executed steps and their status.

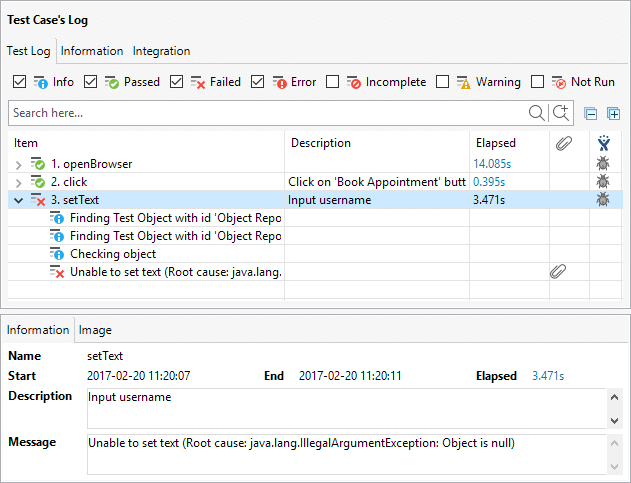

Details of the executed steps

Detail of the items:

Component Description
Log Information Information of the selected iteration in the Test Case’s Log section: * Name of the test step (the name of the keyword used in the test step) * Moreover, it has execution Start/End date time and duration. * Additionally, it includes the Description of the test step. * Finally, it also shows any system Message raised when the test step executes.
Log Image It is the screenshot taken from the application under test. Moreover, it is captured in either of the following situations: * First, an error occurs during test execution * Second, the Take Screenshot keyword is used.
  1. Secondly, users can quickly determine which type of information to display by using the provided filters:
Filter Description
Info Info Show the messages logged for information/reference.
passed status Katalon Studio Passed Show the steps which execute successfully.
Failed status Katalon Studio Failed Show the steps which failed to execute.
Error status Katalon Studio Error Show the steps having errors.
Incomplete status Katalon Studio Incomplete Show incomplete steps due to other factors such as wrong syntax, power shortage, disconnected network, etc.
Warning status Katalon Studio Warning Show the steps which have warning status.
Not Run status Katalon Studio Not Run Show the skipped steps.
  1. Thirdly, if JIRA configures in Project Settings, users can submit a ticket to this system. Moreover, you can refer to Configure JIRA Integration (https://docs.katalon.com/display/KD/JIRA+Integration) for more details.

  2. Fourthly, screenshots are taken for the failed steps. Moreover, users can hover the mouse cursor over the attachment icon to review.

Information Tab

Users can find the summary information of the test case in this tab.

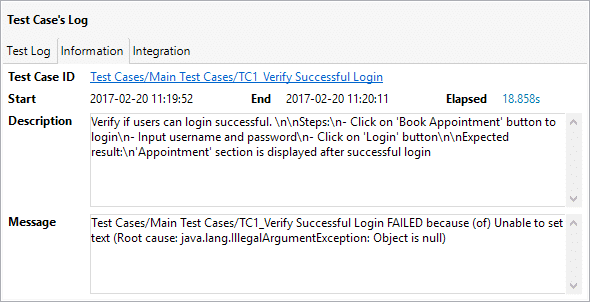

summary information of the test case

The items include:

Field Description
Test Case ID It is the ID of the executed test case in Katalon Studio. Moreover, once clicked, the system navigates users to the respective test case.
Start / End / Elapse Execution start/end date time and duration.
Description Description of the test case.
Message Any system message raises when this iteration executes.

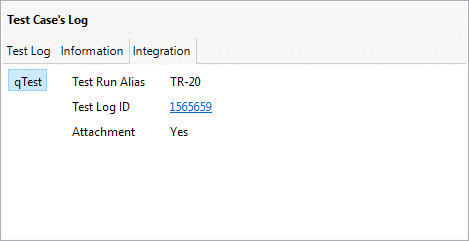

Integration Tab

The information regarding qTest Integration of this iteration displays in this tab.

qTest integration test suite reports in Katalon

The fields include:

Field Description
Test Log ID It is the ID of the integrated qTest Test Run. Additionally, once clicked, the system navigates users to the respective qTest page.
Test Run Alias It is the alias of the integrated qTest Test Run.
Attachment Indicate whether all execution logs and reports place in a zipped file sent to qTest as an attachment.

Test Suite Collection Report

Beginning in version 6.3.0, we can view the reports directly inside each Test Suite Collection page.

Moreover, Test Suite Collection Report is only available for Katalon Studio Enterprise users.

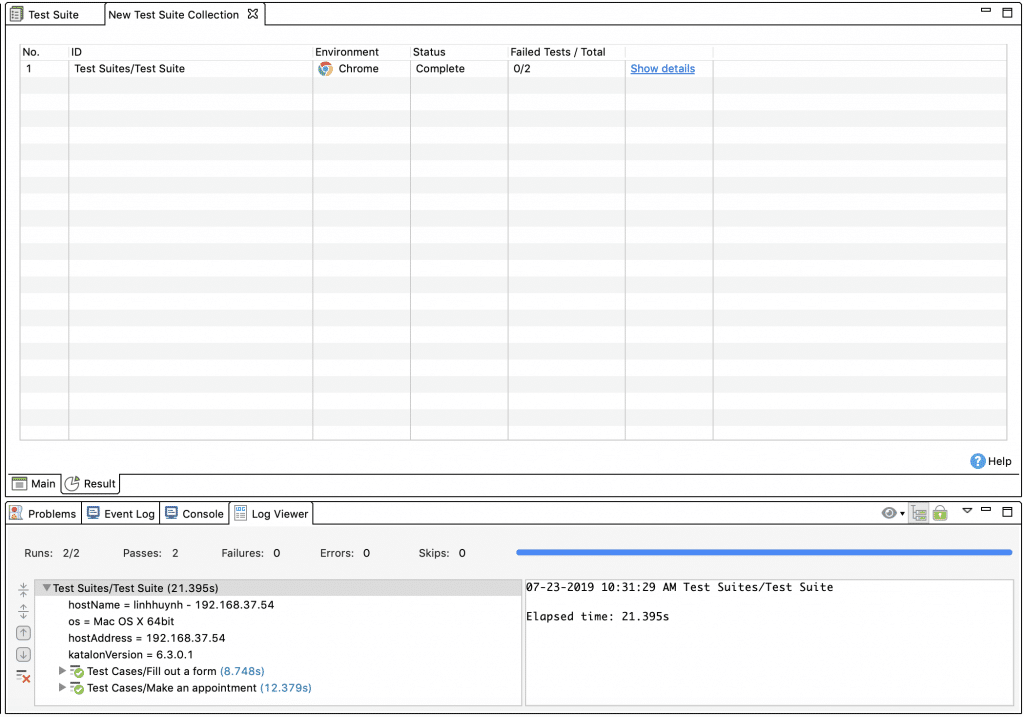

In addition to the above, in the Test Suite Collection page, click on the Result tab to view its details:

view report inside test suite collection test suite reports in Katalon

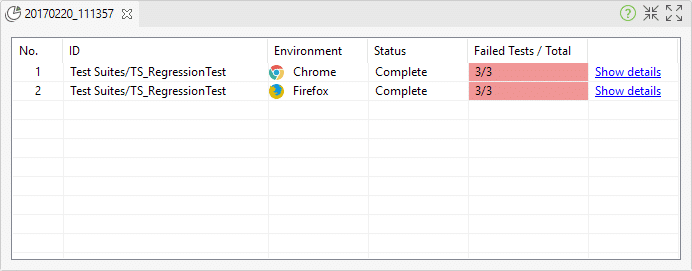

View report inside test suite collection 2 test suite reports in Katalon

where:

Filter Description
ID The ID of the executed test suite in Katalon Studio.
Environment It is the environment in which the test suite executes.
Status It is information about whether the execution is complete or not.
Failed Tests / Total Total test cases in the test suite and the number of failed test cases, if any.
Test Suite Details Click on this link to be redirected to a detailed report of the test suite.

Report History

Report Historyis only available for the Katalon Studio Enterprise version.

Moreover, once a test suite/test suite collection finishes its execution, a historical report will be automatically generated and stored in Reports.

For example:

Test explorer test suite reports in Katalon

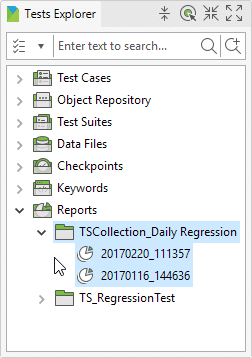

Test explorer 2 test suite reports in Katalon

The report will name with the following naming convention: YYYYMMDD_HHmmss, which is the date-time when the test suite/ test suite collection starts its execution.

Export reports to other formats

For sharing, users can generate reports of test suites into other formats such as HTML, CSV, PDF, and JUnit using the context menu in Test Explorer as the example below:

  • For Katalon Studio version 6.1.5- 6.3.3, please install the Basic Report plugin to use this feature.
  • Subsequently, starting in version 7.0, Katalon Studio automatically generates JUnit reports for both Test Suite and Test Suite Collection.

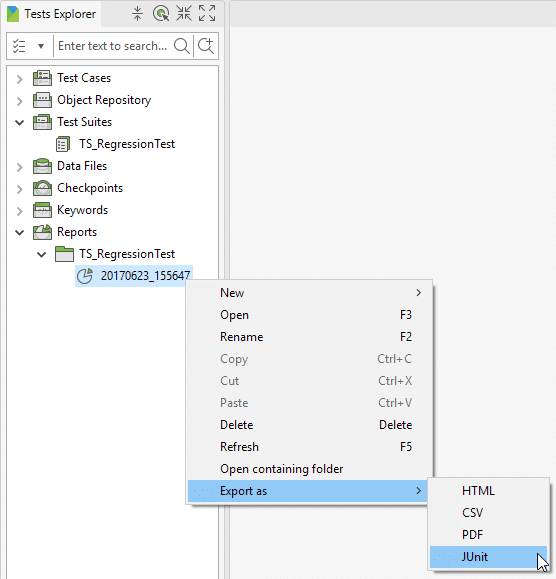

generate reports of test suites into other formats test suite reports in Katalon

Katalon Studio’s Reports feature allows users to overview test execution by providing the essential details and necessary information. Additionally, it provides information from PASSED/FAILED to further details on the execution environment, test summary, or logs. Subsequently, using this information, test managers and QAs can better manage and track test activities, resulting in improved testing productivity. Conclusively, that's all about how to view test suite reports in Katalon.
