In the previous tutorials, we have had our hands on Postman and learned how to use it in real life. We discussed about the pre request script and how we can dynamically change the values of variables before sending the requests.  In postman navigation we learned that we need Authorization for accessing secured servers. Authorization is the most important part while working with secured servers, which is most likely to happen. We will learn about

  • Authorization and Authentication
  • Authorization vs Authentication
  • Need for Authorization
  • Basic Authentication in Postman

What is Authorization?

The meaning of authorization can be seen as a question which is, are we eligible to access a secured resource on the Server? If the answer is yes, then in technical terms we can say that we are Authorized to access the resource. If the answer is No, we can say that we are not Authorized to access the resource. For example, let us say you have added yours and your sister's fingerprint in your phone. You and your sister can open the same mobile phone, which means only you and your sister are authorized to open the phone and see the data. Similarly, while there could be many APIs in a company or a project. It is not necessary that everyone will have access on all the APIs. Only authorized people can access the secured APIs.

Authorization Vs Authentication

Authorization and Authentication are two closely related terms. These two terms can also be confusing at first. In this section, we will clear the confusion about these two terms.

Authentication is a process of presenting your credentials to the system and the system validating your credentials. These credentials tell the system about who you are. This enables the system to ensures and confirm a user’s identity. Here system can be anything, it can be a computer, phone, bank or any physical office premises.

Whereas Authorization is a process of allowing or denying someone from accessing something, once Authentication is done. So in layman terms Authentication tells who you are while Authorization tells what you can do.

When a person accesses the server with the key/password, the server checks whether the person is available in directory and is also associated with the same key/password. If it is, you are good to go (Authentication). If you have access to the resource, then you will be granted access to the resource (Authorized).

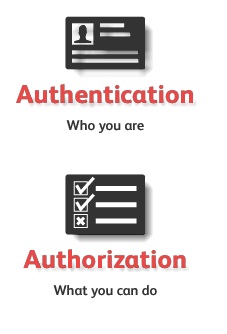

Authentication vs Authorization

We will see the following short example to tell you how does a server rejects unauthorized person.

Authorization using Postman

Checking Authorization

For this chapter, we will be using the endpoint https://postman-echo.com/basic-auth

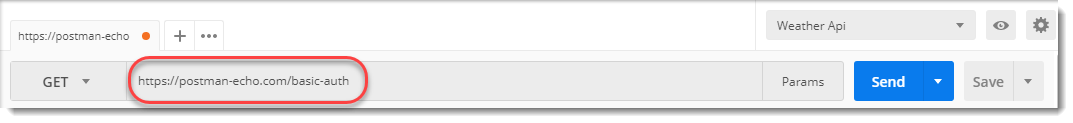

1.Create a GET request and enter the endpoint as https://postman-echo.com/basic-auth

Basic Authentication in Postman

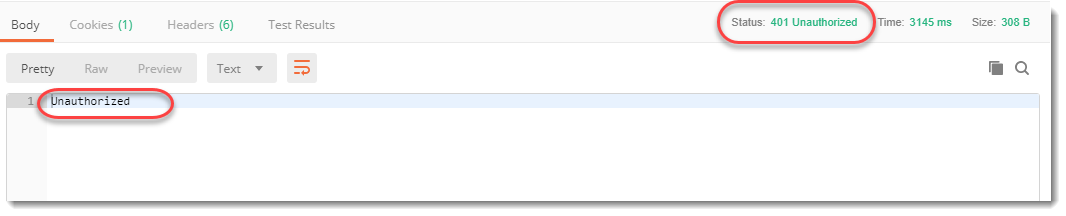

Press send and look at the response

Basic_Auth_Response_Unauthorized

Note: The status code is 401 which corresponds to unauthorized access and the response message says Unauthorized.

The status code and response from the server indicates that we are not authorized to access the API we are trying to access(See Responses tutorial to learn more**). Later in the tutorial, we will try to access the same API using the credentials as we discussed in the last section.

Need for Authorization

In the last section, we discussed that a resource owner does not allow access to the resources to everyone in the company. This is because it can lead to possible security breach. If I allow an intern to access my database apis then inadvertently he can change the data and that data can be lost forever which can come as a cost to the company. There are numerous reasons possible for the same. Maybe a person changes the data for money or a person can leak the data to another company. Authorization plays a very important role in deciding the accesses and tightening the security. Let us see the different types of Authentication available to us.

Basic Access Authentication / HTTP Basic Authentication

A Basic Access Authentication is the most simple and basic type of authorization available. It requires just a username and password for checking the authorization of any person (That is why we say basic access authentication). The username and password are sent as header values in the Authorization header. While using basic authentication we add the word Basic before entering the username and password. These username and password values should be encoded with Base64 otherwise the server won't be able to recognize it. We will follow these steps to check whether we can access the same API we used above or not

Checking authorization using credentials

1.Enter the endpoint https://postman-echo.com/basic-auth in GET request.

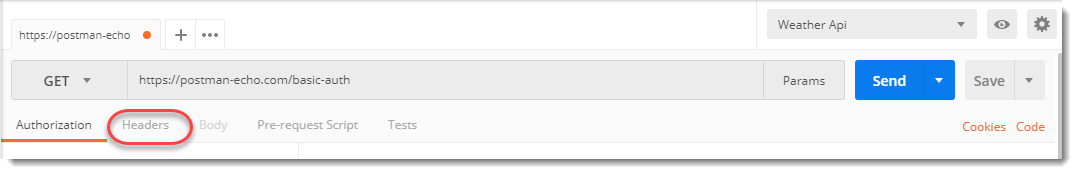

2.Go to Headers

Selecting_Headers

3.Enter the following key value pairs in Header

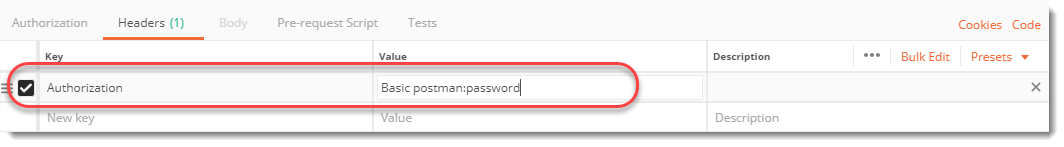

Authorization   :    Basic postman:password

Authorization_Basic_Plain_Text

Note: We are using username as postman and password as password

4.Press Send and see the response box and status code.

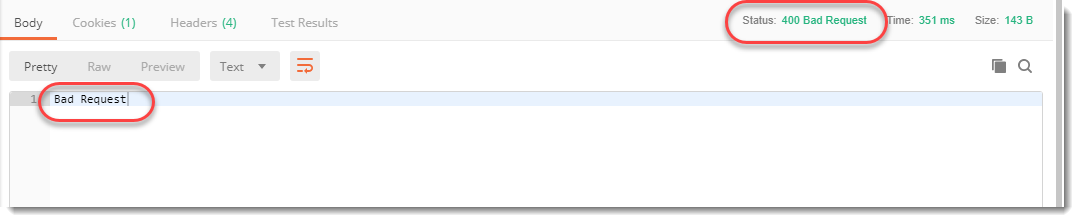

Bad_Request_Basic_Auth

It still says 400 , Bad Request.(This part we have already covered in the Responses Chapter  under Status codes and their meaning). Can you guess why?*** If you remember what we learnt in last section, a basic access authentication requires username and password to be encoded in Base64 but here we just sent the username and password in plain text. As a result server returned a 400, Bad Request status code. Before we move forward it will be beneficial to understand what Base64 encoding is.

What is Base64 encoding?

An encoding is used in the authentication because we don't want our data to be transmitted directly over the network. There are a numerous reasons for that. Network scanners can read your Request and retrieve the Username and Password sent without encoding. Also, bits and bytes transmitted directly can be considered as inbuilt command bits by the modem or other equipment in the network chain. For example, if there is an inbuilt command of 0101101010 which means reset to the modem then while transmitting we have may want get a data sequence of 001101010010110101011020. Here the modem might interpret it as an reset command and will reset itself. In order to avoid such problems it is beneficial to encode the data.

We use base64 particularly because it transmits the data into textual form and send it in easier form such as HTML form data. We use Base64 particularly because we can rely on the same 64 characters in any encoding language that we use. Although we can use higher base encoding methods also but they are very hard to convert and transmit which wastes time unnecessarily.

Coming back to the original problem of sending a Base64 encoded string in Authorization header. We have two ways in front of us for creating a Base64 encoded string:

  • Through third party website
  • Through Postman

We will see both of the options one by one. For now, follow the steps for accessing the api by decoding from third party website.

Authenticating by encoding through third party website

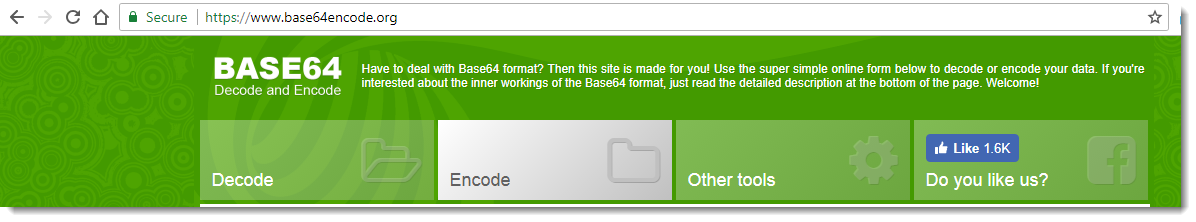

1.Go to https://www.base64encode.org/

Base64_Website

Note: There are thousands of websites available for the same purpose. You can use anyone just make sure you encode to the same value as us. Also, we are using Microsoft Edge as the browser, though it should not make any difference.

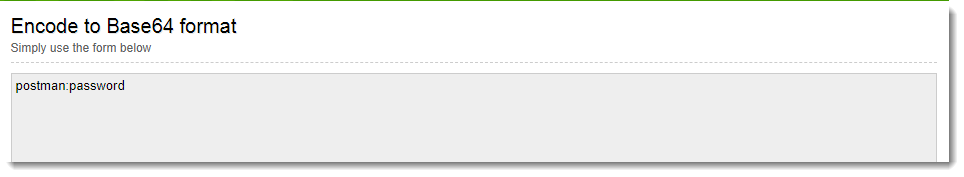

2.Paste in the box the following values

postman:password

Encode_Box

3.Press Encode.

Press_Encde

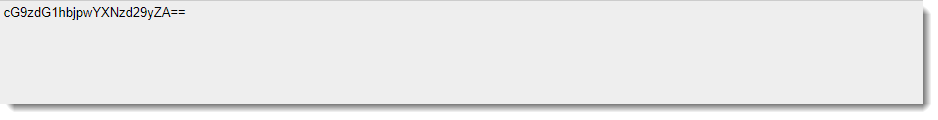

4.Copy the encoded text.

Encode_Response

Note: Do not use space in between any two texts or symbols. postman : password will encode to a different value while postman: password will encode to a different one. Needless to say, both will be considered wrong. Use postman:password only.

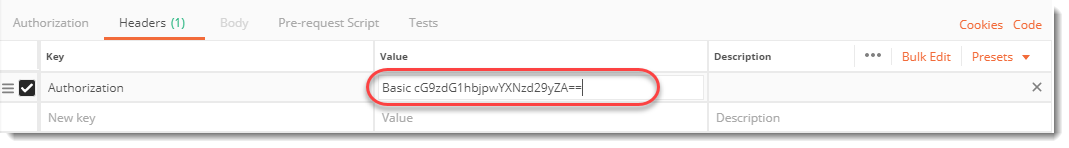

5.Go to the postman app and instead of postman:password, paste the encoded value

Encoded_Basic_Base64

6.Press send and see the value of the response box and the status code.

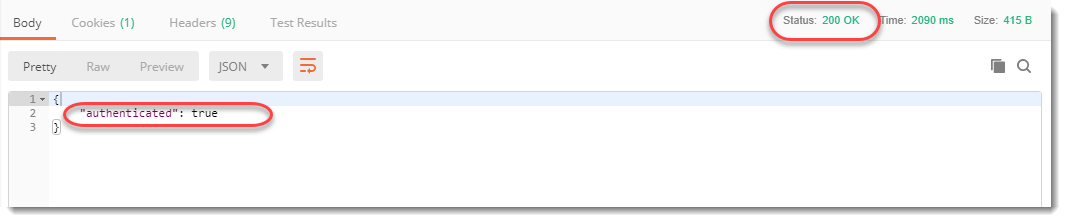

Basic_Auth_Response_Authorized

200 OK, authenticated means we have provided correct credentials and now we are authorized to access the data.

Authenticating by encoding through Postman

Instead of going to a third party website we will try to encode using Postman.

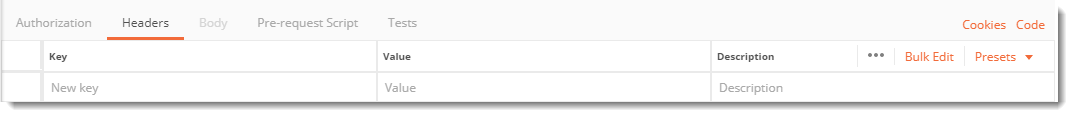

1.Erase the key value pair that we entered earlier so that it now has no values.

Header_Empty

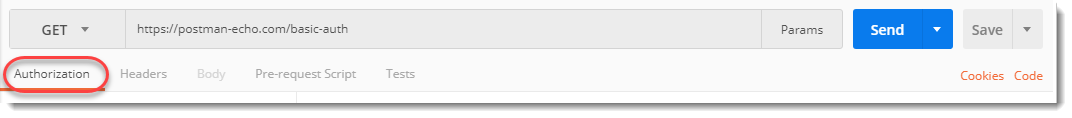

2.Go to the authorization tab

Authorization_Tab

3.Select Basic Auth in the Type dropdown

Select_Basic_Auth

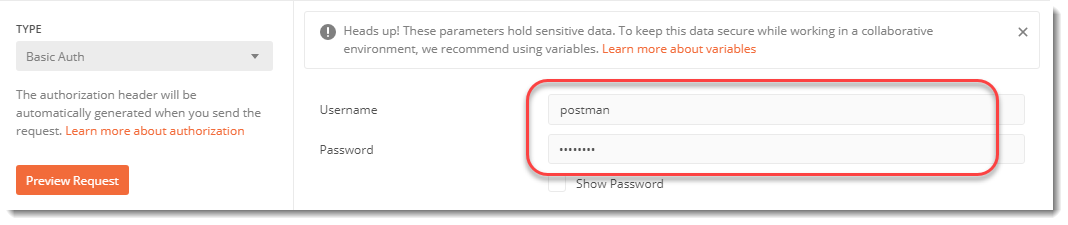

4.Enter username as postman and password as password

Basic_Auth_Username_Password

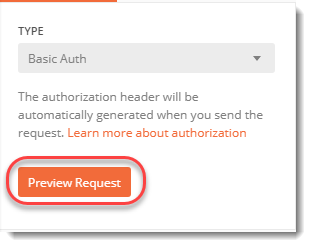

5.Press Preview Request

Preview_Request

6.Go to Header and see that Postman has converted the username and password for you.

Encoded_Basic_Base64

7.Press send and voila! we are authenticated.

Basic_Auth_Response_Authorized

Here we conclude our tutorial. I hope you must have learnt a good deal about basic Authorization in Postman. It is not that hard but it never hurts to just go through the tutorial once again to have a good hand on Authorization. Authorization and Authentication will be one of the most important topic that you will learn, so please internalize all the concepts taught here. We will move on to our next tutorial now.
