As a quality engineer, we all know that for testing a web-based application, we need a perform specific actions(such as click, type, etc.) on the HTML elements. Now, when we go for automation of those applications, the automation tool should also be capable of performing the same operations on the HTML elements that a human is capable of. So, now the question comes, how do these automation tools identify on which HTML element they need to perform a particular operation? The answer to this is "Locators in Selenium".

Locators are the way to identify an HTML element on a web page, and almost all UI automation tools provide the capability to use locators for the identification of HTML elements on a web page. Following the same trend, Selenium also possesses the ability to use "Locators" for the identification of HTML elements and are popularly known as "Selenium Locators". Selenium supports various kinds of locators. Let's understand the concept of "Selenium Locators" in depth by covering the details under the following topics:

  • What are locators in Selenium?
    • How to locate a web element in DOM?
    • What locators are supported by Selenium?
  • How to use locators to find web elements with Selenium?
    • How to locate elements in Selenium using By, ID, Name, Xpath, etc
    • Example showing usage of all the locators?
  • Best Practices For Using Locators In Selenium

What are Locators in Selenium?

As discussed above, identification of the correct GUI element on a web page is pre-requisite for creating any successful automation script. It is where locators come into the picture. Locators are one of the essential components of Selenium infrastructure, which help Selenium scripts in uniquely identifying the WebElements(such as text box, button, etc.) present of the web page. So, how do we get the values of these locators? And how to use the same in the automation framework? Let's first understand on the whole page, how we can identify a specific web element in DOM and then we will try to grab its locator:

How to locate a web element in DOM?

As we all know, the first thing to start with is to find the HTML element in DOM (Document Object Model), for which we need to grab the locator. We can follow the following steps to identify the web element in DOM on a web browser:

Note: We are showing the steps to identify the web element in Google chrome. The steps for other browsers will almost be the same, apart from the way how you can open the DOM in that browser. We are using the ToolsQa demo site "http://demoqa.com/" for the reference.

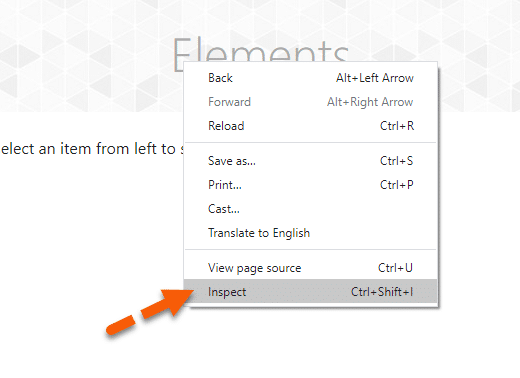

1.  DOM can be accessed in Google Chrome either by pressing F12 or by right click on the web page and then by selecting Inspect (as shown in the screenshot below).

Inspection

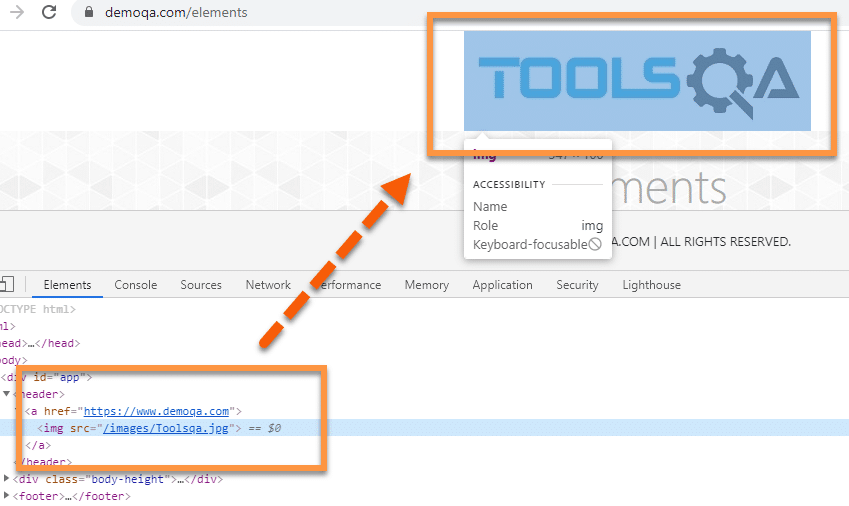

  1. Once we click on the "Inspect option", it will open the  Developer Tools console, as shown below. By default, it will open the "Elements" tab, which represents the complete DOM structure of the web page. Now, if we hover the mouse pointer over the HTML tags in the DOM, it will highlight the corresponding elements it represents on the webpage.

Inspect element

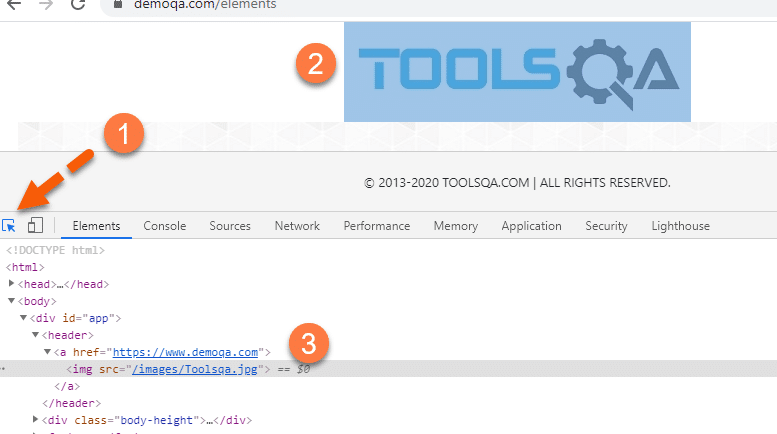

3.  Now, the main point is, how do we find the web element in the DOM. Click on the "Mouse Icon" arrow (as designated by Marke 1 in below screenshot) and then select the web element on the web page. It will automatically highlight the corresponding HTML element in the DOM. Suppose we want to find the HTML elements corresponding to the banner image (as shown below by marker 3). When we select the mouse point and click on the banner image, it will automatically highlight the corresponding HTML element, as shown by marker 2, in the below screenshot:

Inspecting an element

So, this way, we can easily search the HTML element in the DOM corresponding to a web element on the webpage. Now, let's try to understand how we can grab a locator for these web elements, which can be directly used by Selenium to identify these web elements uniquely:

What locators are supported by Selenium?

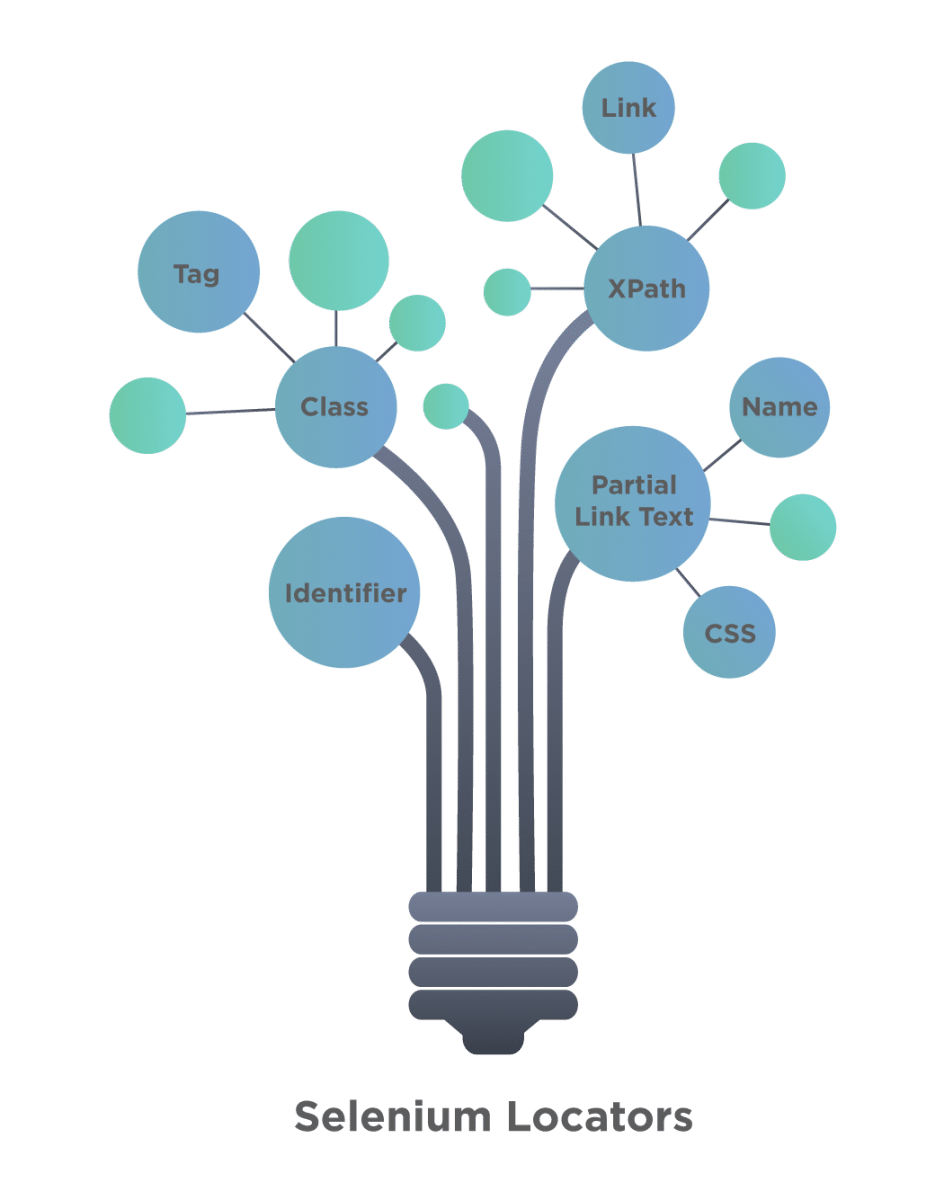

There are various types of locators, using which we can identify a web element uniquely on the Webpage. The following figure shows a good depiction of several types of locators that Selenium supports.

Locators

To access all these locators, Selenium provides the “By” class, which helps in locating elements within the DOM.  It offers several different methods (some of which are in the image below) like className, cssSelector, id, linkText, name, partialLinkText, taName, and xpath, etc., which can identify the web elements based on their corresponding locator strategies.

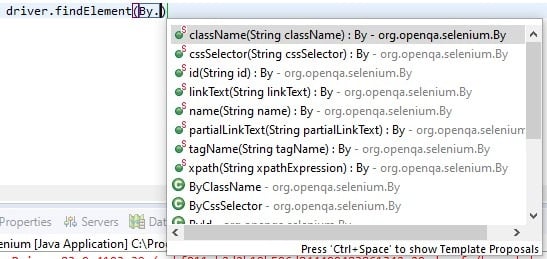

You can quickly identify all the supported locators by Selenium by browsing all the visible methods on the "By" class, as shown below:

Locators

As we can see, Selenium supports the following locators:

  • ClassName – A ClassName operator uses a class attribute to identify an object.
  • cssSelector – CSS is used to create style rules for webpages and can be used to identify any web element.
  • Id – Similar to class, we can also identify elements by using the ‘id’ attribute.
  • linkText – Text used in hyperlinks can also locate element
  • name – Name attribute can also identify an element
  • partialLinkText – Part of the text in the link can also identify an element
  • tagName – We can also use a tag to locate elements
  • xpath – Xpath is the language used to query the XML document. The same can uniquely identify the web element on any page.

Now, let's understand the usage of all these types locators in the Selenium framework:

How to use locators to find web elements with Selenium?

As we mentioned above, Selenium supports various types of locators. Let's under the details and usage of all of them:

How to locate a web element by using the "id" attribute?

"ID" as a locator is one of the most common ways of identifying elements on a web page. According to W3C, an ID for a web element always needs to be unique. The ID is one of the fastest and unique ways of locating web elements and is considered as one of the most reliable methods for determining an element. But with the advancement in technologies and more of the dynamic web pages, "IDs" are generated dynamically and generally not the reliable way to locate a web element, as they change for different users.

Let's understand the usage of the "id" attribute for locating a web element with the help of an example.

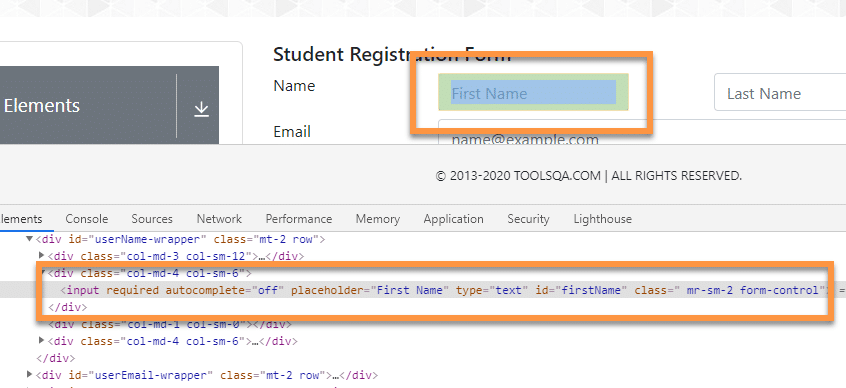

Suppose we have the locate the text box of First Name on the web page "http://demoqa.com/automation-practice-form". When we inspect it in DOM, we see the following DOM structure:

Element Inspection

As we can see, the "Input" HTML tag has the following properties and attributes:

<input required="" autocomplete="off" placeholder="First Name" type="text" id="firstName" class=" mr-sm-2 form-control">

As we can see, the HTML tag contains the attribute “id” inside the input tag. The id here used is the “firstName*” which we can use to locate this element in the web page. Now, to find the “First Name” text box on the web page, we can use the following syntax:

By.id("firstName");

As we can see that we have used the "By.id()" method, and we have passed the "firstName", which is the "id" of the text box we are trying to locate. So, this way, we can locate any web element which has a specified "id" attribute associated with it.

How to locate a web element by using the "name" attribute?

Similar to the id attribute, Selenium also offers users a way to identify the element using the name attribute. But contrary to id, a web page can have multiple elements with the same “name” attribute. So, if we are going to use the name attribute for the identification of a web element, we should always make sure that the name attribute must contain a unique value. Otherwise, it may identify several different elements on the same page, which may have the same name value.

If multiple elements have the same value of the ‘name’ attribute, then, Selenium will just select the first values in the page which matches the search criteria. So, we always recommend making sure that the value of the name attribute should be unique when we select it for locating a web element.

Let's understand the usage of the "name" attribute for locating a web element with the help of an example.

For example, suppose we need to locate the checkbox in the gender section on the web page "http://demoqa.com/automation-practice-form", as highlighted below:

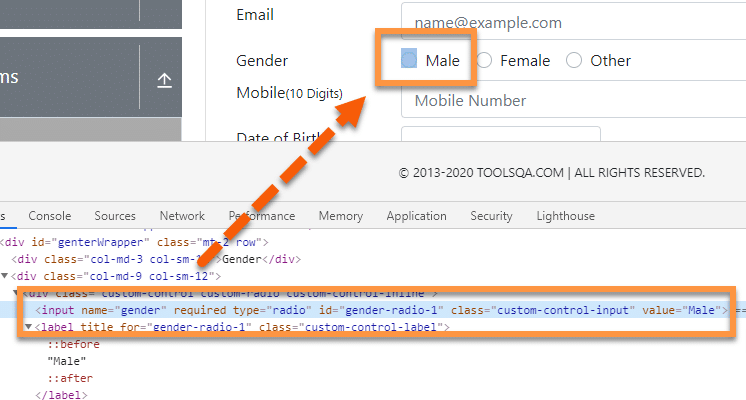

Radio Button Inspection

As we can see, the "Input" HTML tag representing the Male Checkbox has the following properties and attributes:

<input name="gender" required="" type="radio" id="gender-radio-1" class="custom-control-input" value="Male">

We can see the attribute ‘name ‘ with value as ‘gender’. We can use the following syntax to locate the web element using the "By" class.

By.name("gender");

As we can see, the "By" class provides the "name" method, which accepts the value of the "name" attribute of the web element. So, using this, we can locate a web element that has a unique name attribute.

How to locate a web element by using the "ClassName" attribute?

ClassName allows SeleniumSelenium to find web elements based on the class values of the DOM. For example, if we want to identify or perform any operation on the form element, we can use the class to identify it.

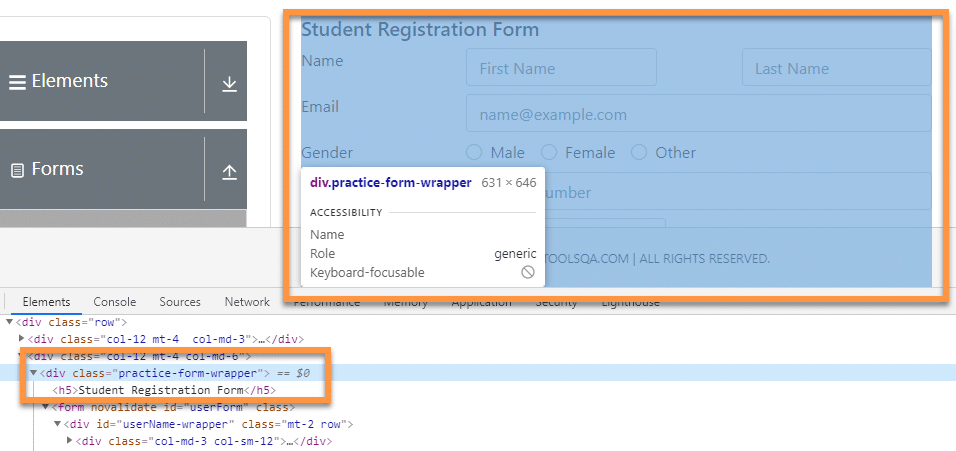

Class Attribute

If we look at the DOM structure of the form, we can see the following snippet eclosing the entire form.

<div class="practice-form-wrapper">

We can use the class attribute value from the above DOM to identify the form. To identify the same on the webpage, we can use the following syntax.

By.className("practice-form-wrapper");

To identify it successfully, we need to make sure that the class name value that we are using for locating the web element, i.e., web form, is unique, and any other class doesn’t have the same value. If any other class contains the same value as this, then Selenium will select whichever element comes first while scrapping through the web page.

How to locate a web element by using the "LinkText" and "partialLinkText" attribute?

LinkText and partialLinkText both are quite similar in functionality and locate web elements by using the hyperlink texts. We can only use them for elements containing anchor(<a>) tags. Similar to other locator strategies, if multiple hyperlinks with the same texts are present on the page, then Selenium will always choose the first one.

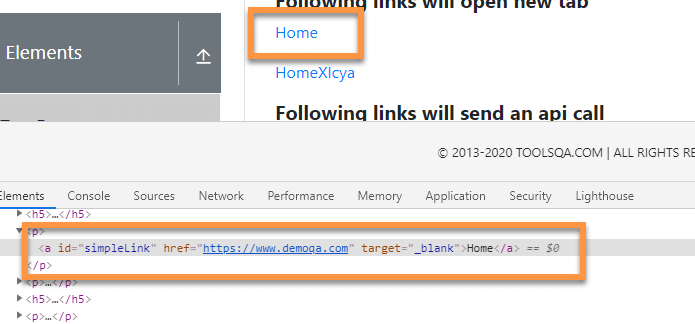

Suppose we need to click on the link as shown below for the "Home" link:

Link Locator

As we can see, the anchor element has the following properties and attributes:

<a id="simpleLink" href="https://www.demoqa.com" target="_blank">Home</a>

For identifying elements using link text or partial link text, we need to use the hyperlink text, as shown below:

By.linkText("Home");

Similarly, partial link text can also recognize the element by using part of the hyperlink text, as shown below:

By.partialLinkText("Ho");

It will identify any link that contains ‘Ho’ in the hyperlink text. Likewise, if several links are containing “Ho”, then Selenium will select the first one.

How to locate a web element by using the "TagName"?

This locator type uses tag names to identify elements in a web page. The tag name is the HTML tag, such as ***input, div, anchor tag, button, etc.


The following syntax finds the web elements with a tagName:

By.tagName("a");

The tagName locator returns all the elements from the page that contains a specified tag.

How to locate a web element by using the "CSSselector"?

CSS or Cascading style sheets are used extensively to style webpages and hence can be an effective medium to locate various web elements. These days most of the web pages are dynamically designed. Thus its quite challenging to get a unique id, name, or class to locate element. In this type of situation, CSS selectors can be a great alternative as these are way faster compared to another locator strategies.

The basic syntax of identifying a web element using CSS is as follows:

css=(HTML Page)[Attribute=Value]

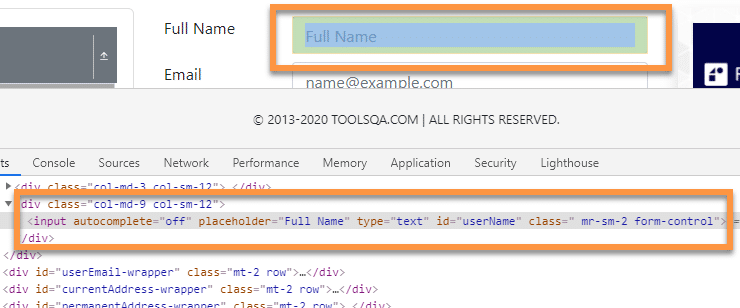

For example, let’s say we want to find the following input textbox using CSS selector.

CSS Selector

As we can see, the input element has the following properties and attributes:

<input autocomplete="off" placeholder="Full Name" type="text" id="userName" class=" mr-sm-2 form-control">

Now, to find the element using the CSS selector, we have to use the following syntax:

By.cssSelector("input[id= ‘userName’]");

Similarly, we can use other attributes along with the tags to define different CSS locators. We will discuss more details about the CSS selector in another tutorial.

How to locate a web element by using the "xpath" attribute?

XPath uses the XML expression to locate an element on the webpage. Similar to CSS selectors, Xpath is quite useful in locating dynamic elements on a webpage. Xpath can access any element present in the webpage even when they have dynamic properties.

The basic syntax of identifying a web element using the XPath locator strategy is as follows:

//tag_name[@attribute_value]

Where the tag_name is the name of the tag in the DOM structure, and the attribute is an attribute of the target element that can identify the web element uniquely.

For example, let’s say we want to find the following input textbox using XPath:

CSS Selector

The XPath for the above example will be:

//input[@id='userName']

So, sample code to find the element using XPath will be the following:

By.xpath("//input[@id='userName']");

Here we have used the input tag and id attribute to identify the element. We will cover the more in-depth details of the "XPath locator" strategy in another article.

Let's now see the usage of these locators' strategies to identify various web elements.

Example showing usage of all the locator's strategies in Selenium:

Suppose we want to automate specific actions on the web page: on the "http://www.demoqa.com/automation-practice-form". The following code snippet shows the usage of various types of Selenium locators to identify and searches the elements on the web page:

package TestPackage;

import java.util.List;
import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.chrome.ChromeDriver;

public class Selenium {

	public static void main(String[] args) {

		 String exePath = "C:\\Selenium\\chromedriver\\chromedriver.exe";
		 System.setProperty("webdriver.chrome.driver", exePath);
		 WebDriver driver = new ChromeDriver();
		 driver.get("http:\\www.demoqa.com\\");


		 /**Locate by ID Attribute
		  * URL - http://www.demoqa.com/automation-practice-form
		  */

		 driver.get("https://www.demoqa.com/automation-practice-form");
		 driver.findElement(By.id("firstName"));

		 /**
		  *  Locate by Name attribute
		  *  URL - http://www.demoqa.com/automation-practice-form
		  */

		 driver.get("https://www.demoqa.com/automation-practice-form");
		 driver.findElement(By.name("gender"));

		 /**
		  *  Locate by className attribute
		  *  URL - http://www.demoqa.com/automation-practice-form
		  */

		 driver.get("https://www.demoqa.com/automation-practice-form");
		 driver.findElement(By.className("practice-form-wrapper"));

		 /**
		  *  Locate by linkText and ParticalLinkText attribute
		  *  URL - http://www.demoqa.com/links
		  */

		 driver.get("https://www.demoqa.com/links");
		 //linkText
		 driver.findElement(By.linkText("Home"));
		 //partialLinkText
		 driver.findElement(By.partialLinkText("Ho"));

		 /**
		  *  Locate by tagName attribute
		  *  URL - http://www.demoqa.com/links
		  */

		 driver.get("https://www.demoqa.com/links");
		 List <WebElement> list = driver.findElements(By.tagName("a"));


		 /**
		  *  Locate by cssSelector attribute
		  *  URL - http://www.demoqa.com/text-box
		  */

		 driver.get("https://www.demoqa.com/text-box");
		 driver.findElement(By.cssSelector("input[id= ‘userName’]"));


		 /**
		  *  Locate by xpath attribute
		  *  URL - http://www.demoqa.com/text-box
		  */

		 driver.get("https://www.demoqa.com/text-box");
		 driver.findElement(By.xpath("//input[@id='userName']"));



	}

}

Now, the interaction with any web application requires the Selenium driver to identify web elements on the page. Until and unless an element gets correctly identified, it's impossible to trigger events like click, enter, etc. on any web element. Now to search the web elements, Selenium provides two methods:

  • findElement: find and return a single web element based on the search criteria of the locator.
  • findElements: find and return all the web elements based on the search criteria of the locator.

Both of these methods accept the object of the "By" class and then return the corresponding web element. We have used the findElement of the Selenium WebDriver to search the various web elements and have passed different types of locators by invoking the various method of the "By" class.

Best Practices For Selenium Locators

Choosing the correct locator for recognizing a web element is quite essential in Selenium. Listed below are some of the best practices that a quality engineer needs to follow to make efficient use of locators in the Selenium WebDriver based automation framework.

  • Do not use dynamic attribute values to locate elements, as they may change frequently and result in breakage of locator script. It also severely affects the maintainability, reliability, and efficiency of the automation script.
  • ID and name attributes take precedence over other locators if your web page contains unique ID and name, then it's always advisable to use them instead of XPath as they are faster and more efficient.
  • While using locators, make sure that your locator points precisely to the required element. If the needed scenario needs to perform some operation on a single element, then make sure that your locator exactly matches to only one element. If the locator points to several different elements, then it may cause breakage in your script.
  • Never use locators to locate auto-generated elements on the web page. Sometimes in a dynamic web environment, element attribute properties are generated at run time. One should avoid these elements as they may cause breakage during script execution.
  • While working with XPath or CSS locators, one should avoid directly using the one generated by the Chrome Dev Tools. It may seem one of the easiest ways to generate XPath, but in the long run, it induces reliability issues, code breakage, maintainability issues, etc. It may look tempting to use these, but you would be better off creating your customized XPath in the longer run.

Key Takeaways

  • Selenium supports 8 different types of locators namely id, name, className, tagName, linkText, partialLinkText, CSS selector and xpath.
  • Using id is one of the most reliable and fast methods of element recognition. Usually, the id is always unique on a given web page.
  • CSS selector and XPath can identify dynamic elements on a web page. A combination of different attributes and tag names can be used with CSS and xpath to identify any given element.

In the end, we now understand various ways in which we can use different locators in Selenium.  In the next article, we will dive deep into CSS Selectors for locating web elements on a webpage.
